How to realign the blade to middle of cutting groove on the Evolution E2

Before you start

Before starting any work check that you have the following equipment:

  • An Allen key (Hex key)
  • A screwdriver

Adjusting Fixed Arm

Should the blade need to be moved away from the edge of the cutting groove there is a small amount of adjustment available between the fixed arm and the base plate.

To adjust the arm you must:

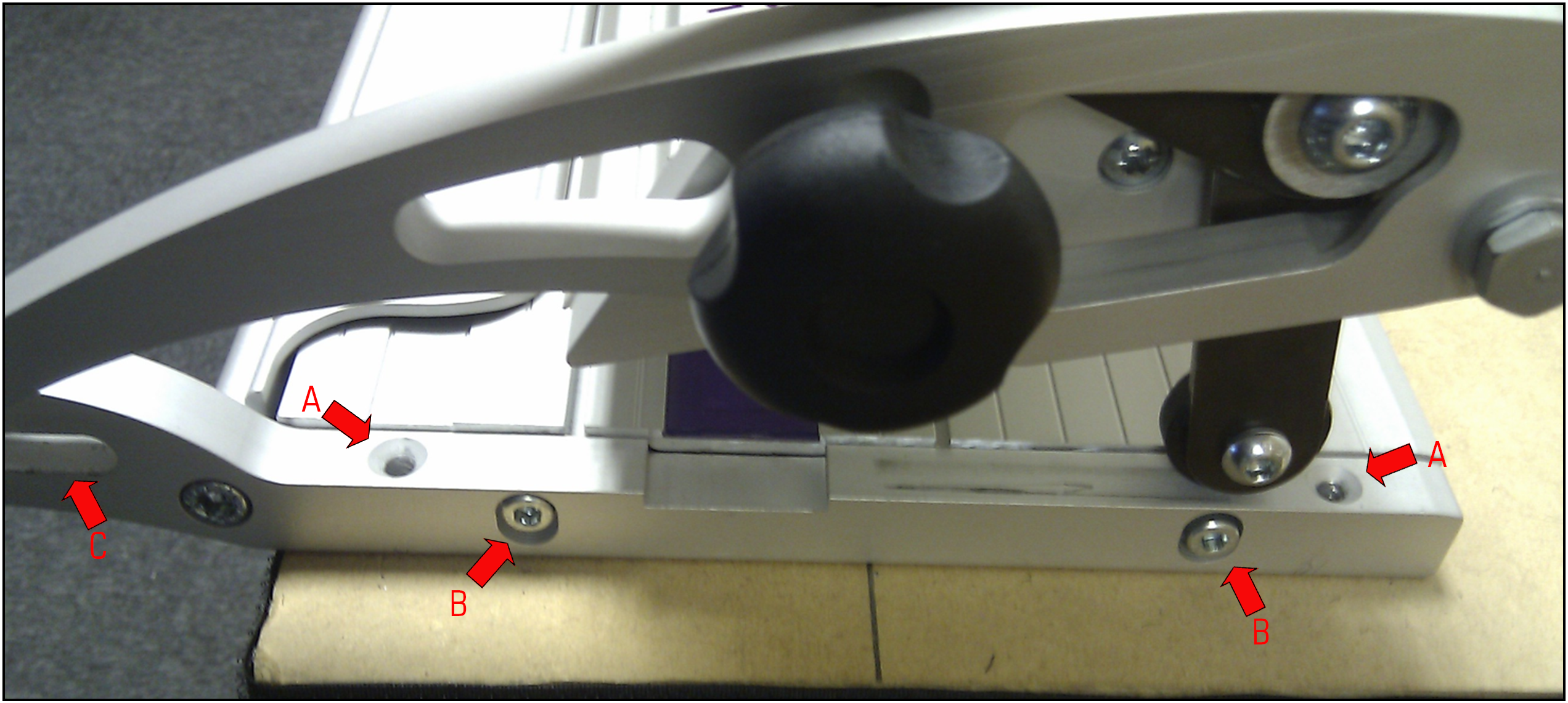

  1. Remove the two screws shown by A
  2. Loosen the two Allen headed screws shown by B
  3. Pull or push the Fixed Arm to make the adjustment shown C
  4. Hold in position whilst re-tightening the Allen screws shown by B
  5. Finally, replace screws shown by A
