How to replace ratchet lever on the Excalibur 6000

To do this you will need the Excalibur 6000 ratchet service kit >

Tools required:

  • 3mm Allen/Hex Key
  • 4mm Allen/Hex Key
  • 6mm spanner/wrench
  • 8mm spanner/wrench
  • 13mm spanner/wrench
  • Petroleum jelly (Vaseline) or lithium grease.

  • Move the multi-tool cutter to a comfortable height and lock it in position using the white nylon locking screw.
  • Ensure that this is done tightly.

  • Unlock and swing the cutter guard open.

  • Loosen the the M5 dome nuts using an 8mm spanner /wrench and remove the ratchet lever along with the five washers (Note their arrangement).
  • Loosen and remove the two M8 dome nuts on the side closest to the handle using a 13mm spanner/wrench.
  • Reattach the guard to ensure safe handling of the cutter head.

  • Using a 13mm spanner/wrench, loosen the black nuts on each bearing (highlighted in blue) by one full turn.
  • Then loosen the black eccentric screws on each bearing (highlighted in purple) by half a full turn using a 6mm spanner/wrench, such that the bearings come away from the guide rods.
  • It is important that the black eccentric screws are not loosened more than is necessary as otherwise the disc spring (located adjacent to the bearing) will be displaced on the screw’s shaft.

  • Unlock the position of the head using the white nylon locking screw and continue to hold the cutter head steady whilst proceeding with the following steps.

  • Then whilst pushing the Cutter Head towards the back of the machine (with the loosened bearings engaging with the guide rods) rotate the cutter head outwards to bring the fastened bearings (at the far end of the head away from the handle) out of engagement with the guide rods, and off the machine.

  • Unlock and swing the cutter guard open again for the following steps.

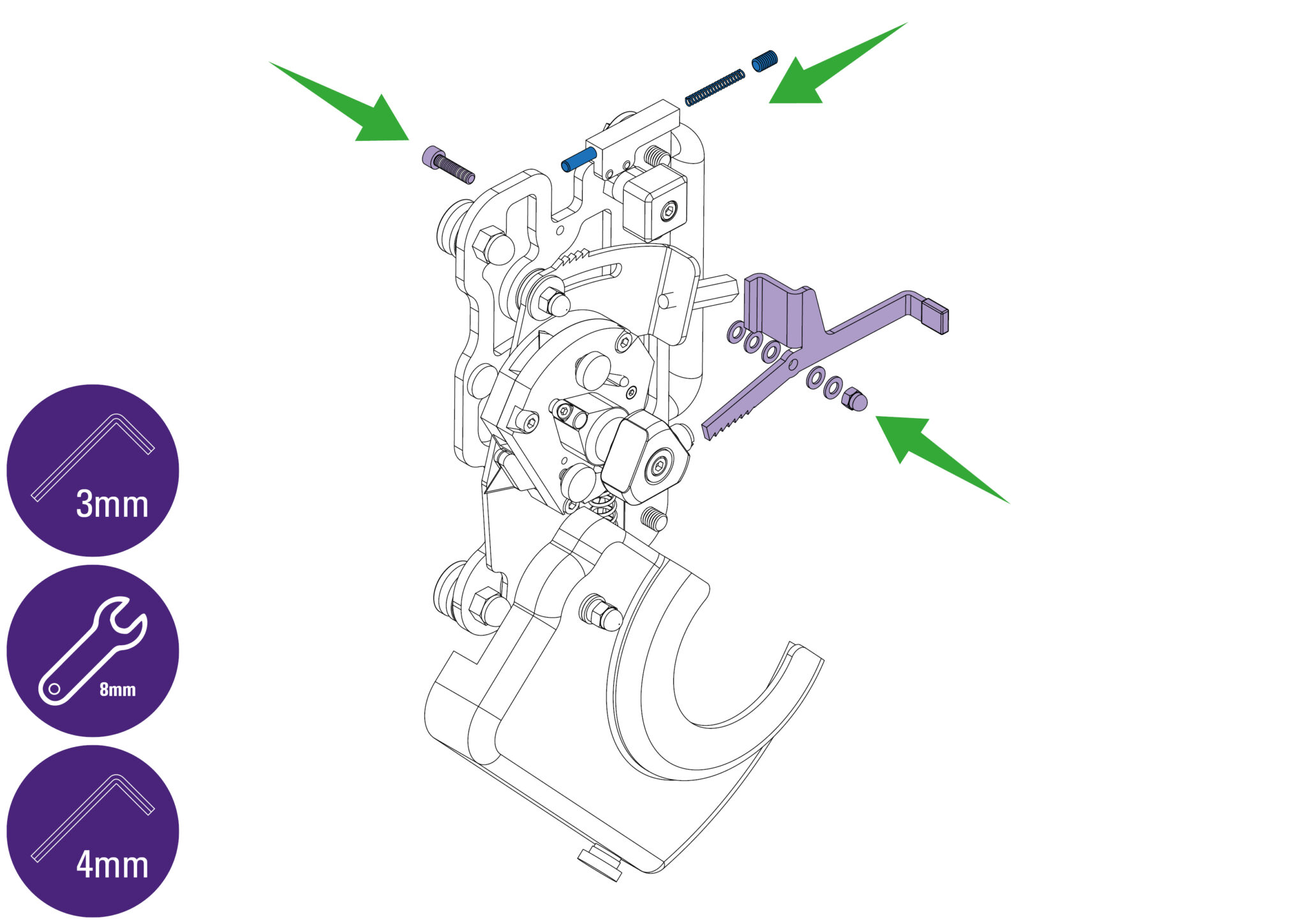

  • Remove and replace the ratchet screw in the back of the head. Prior to replacing the ratchet lever, remove the spring block components (highlighted in blue).
  • Ensure that both faces of the ratchet lever are lubricated around the pivot hole using petroleum jelly (Vaseline) or lithium grease, before reassembly.
  • Once the ratchet lever, ratchet screw, and washers are correctly assembled (as displayed), reassemble and fasten the spring block components (highlighted in blue) tightly. Ensure that the grub screw is fastened as far as it will go in the spring block and that the pin’s rounded face engages with the ratchet lever.
  • Close the guard on the cutter head.

  • Align and engage the loosened bearings with the guide rods towards the front of the machine, and rotate the cutter head inwards (as was done earlier but in reverse).

  • Then whilst pulling the cutter head towards the front of the machine (with the fastened bearings engaging with the guide rods), tighten the black eccentric screws on each of the front two bearings using a 6mm spanner/wrench, until there is no wobble experienced on the cutter head.
  • Follow up by tightening the black nuts on the front two bearings with a 13mm spanner/wrench, whilst holding the eccentric screws still using a 6mm spanner/wrench.
  • Swing out the guard on the cutter head and tighten the M8 dome nuts.
  • Then close the guard on the cutter head.
